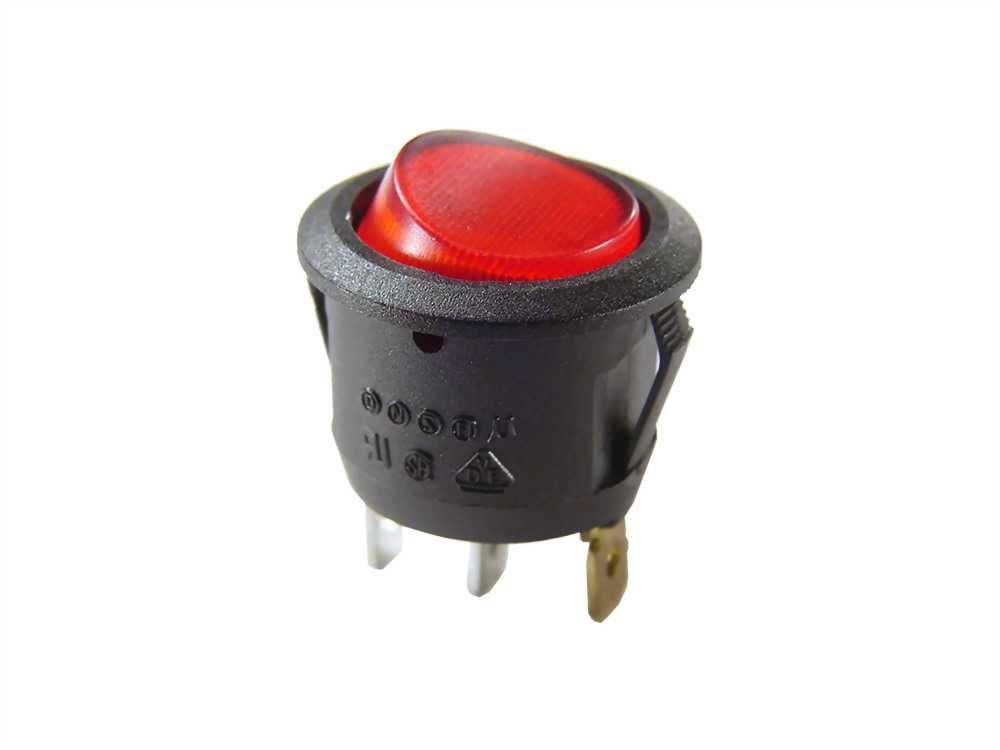

SPECIFICATION:

Rating: 16A 125V / 10A 250V AC

Mounting Hole: Ø 20.2 mm

Operation Force: 450 ± 200g

Function: ON - OFF with Lamp

Terminal Type: #187 Terminal (4.8mm)

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 50MΩ Max.

Withatand Voltage: AC 1,500 V 1 Minute

Operating Temperature: -20℃ ~ +85℃

Approvals : RoHS,CUS,ENEC10,CSA,VDE,TUV,

                   SEMKO,NEMKO,DEMKO,FIMKO,
