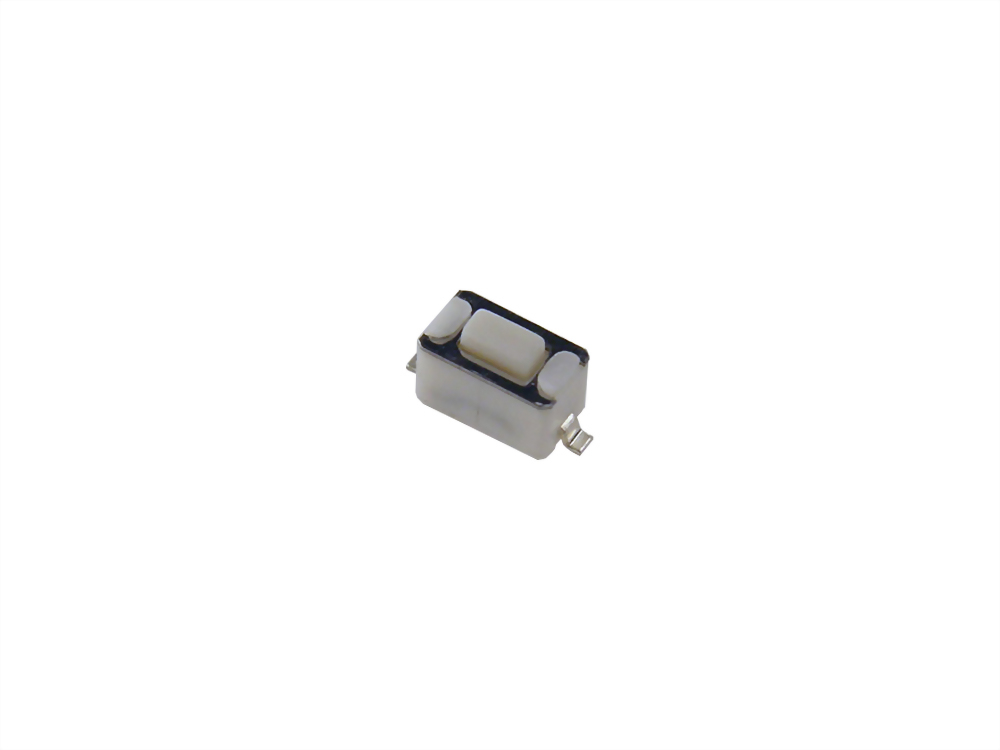

SPECIFICATION:
Rating: 50mA 12V DC
Operating force: 180gf , 250gf
Dielectric strength: AC 250 V 1 minute
Insulation resistance: 100 MΩ DC 500 V
Contact resistance: 100 MΩ Min.
Life Test: 50,000 cycles
FUNCTION:
E = 6.0 x 3.5 x 4.3 mm
EA = 6.0 x 3.5 x 5.0 mm
Approvals: RoHS
