• WATERPROOF SWITCH ( IP65~67 ) (SR13-112B8 (IP65))

WATERPROOF SWITCH ( IP65~67 ) (SR13-112B8 (IP65))

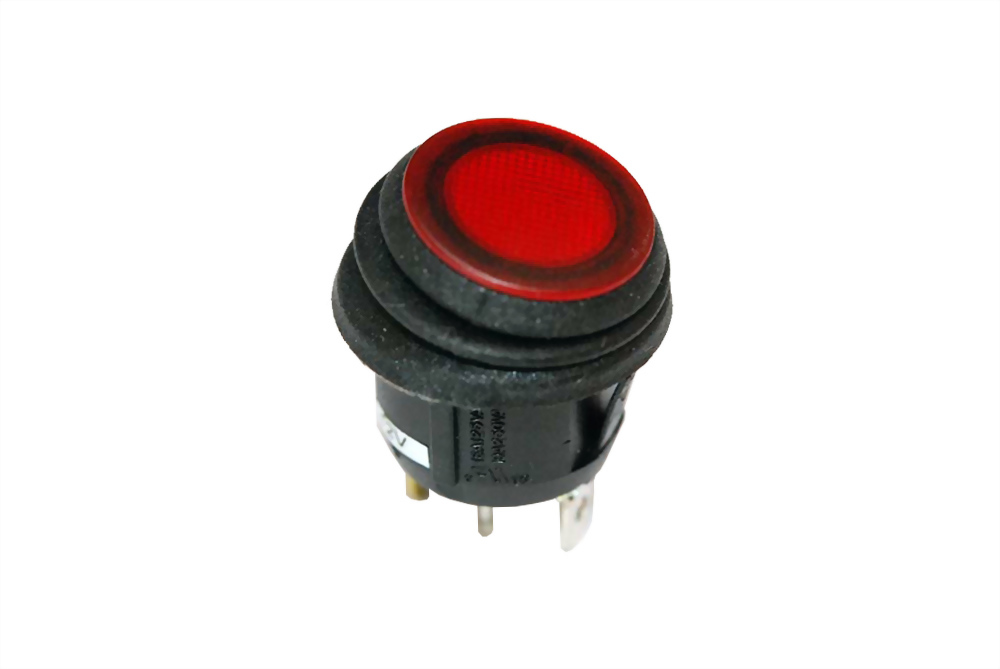

Waterproof Rocker Switch
SPECIFICATION:
Rating: 16A 125V / 10A 250V AC
20A 12V DC
Mounting Hole: Ø 20.2 mm
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 1,500 V 1 Minute
Operating Temperature: -20℃ ~ +85℃
FUNCTION:
A8 = ON - OFF 2P
B8 = ON - OFF 3P with NEON
B8F = (ON) - OFF 3P with NEON
C8 = ON - ON 3P
D8 = ON - OFF - ON 3P
F8 = (ON) - OFF 2P
E8 = ON - (OFF) 2P
Approvals: RoHS, CUS, ENEC10, CSA, VDE, TUV, CQC
モデル : SR13-112B8 (IP65)

Waterproof Rocker Switch

SPECIFICATION:

Rating: 16A 125V / 10A 250V AC

            20A 12V DC

Mounting Hole: Ø 20.2 mm

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 50MΩ Max.

Withatand Voltage: AC 1,500 V 1 Minute

Operating Temperature: -20℃ ~ +85℃

FUNCTION:

A8 = ON - OFF 2P

B8 = ON - OFF 3P with NEON

B8F = (ON) - OFF 3P with NEON

C8 = ON - ON 3P

D8 = ON - OFF - ON 3P

F8 = (ON) - OFF 2P

E8 = ON - (OFF) 2P


Approvals: RoHS, CUS, ENEC10, CSA, VDE, TUV, CQC
