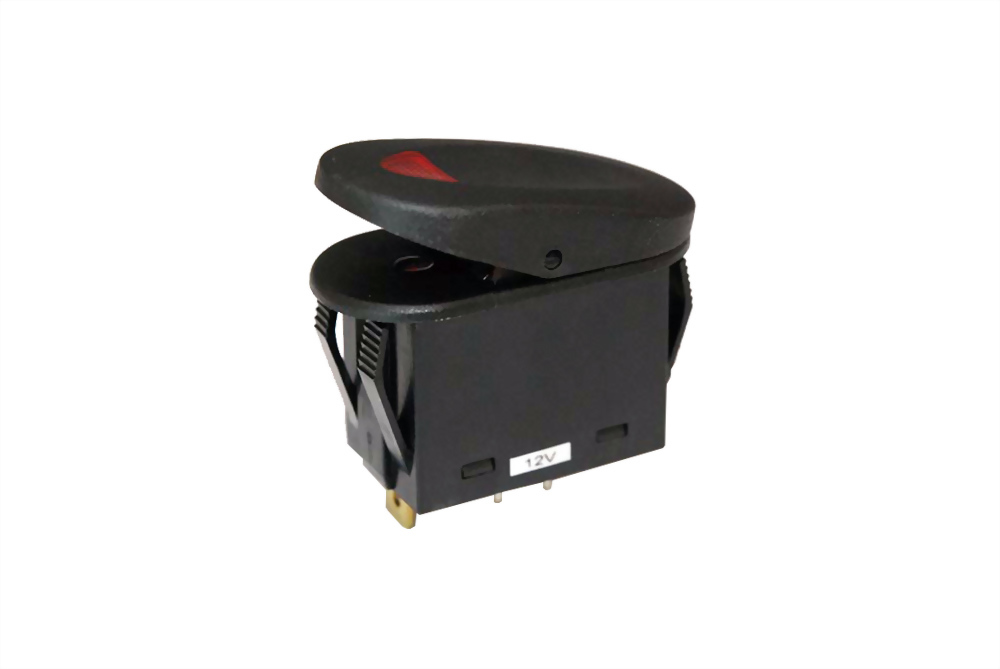

• WATERPROOF SWITCH ( IP65~67 ) (SR13-271A2 (IP66))

WATERPROOF SWITCH ( IP65~67 ) (SR13-271A2 (IP66))

Waterproof Rocker Switch
SPECIFICATION:
Rating: 20A 125V / 10A 277V AC / 21A 14V DC
Mounting Hole: 36.8 x 21.2 mm
Function: SPST ON-OFF With one Lamp
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 1,500 V 1 Minute
Operating Temperature: -20oC ~ +85oC
Approvals: RoHS
モデル : SR13-271A2 (IP66)

Waterproof Rocker Switch

SPECIFICATION:

Rating: 20A 125V / 10A 277V AC / 21A 14V DC

Mounting Hole: 36.8 x 21.2 mm

Function: SPST ON-OFF With one Lamp

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 50MΩ Max.

Withatand Voltage: AC 1,500 V 1 Minute

Operating Temperature: -20oC ~ +85oC


Approvals: RoHS
